Album: Benchwork

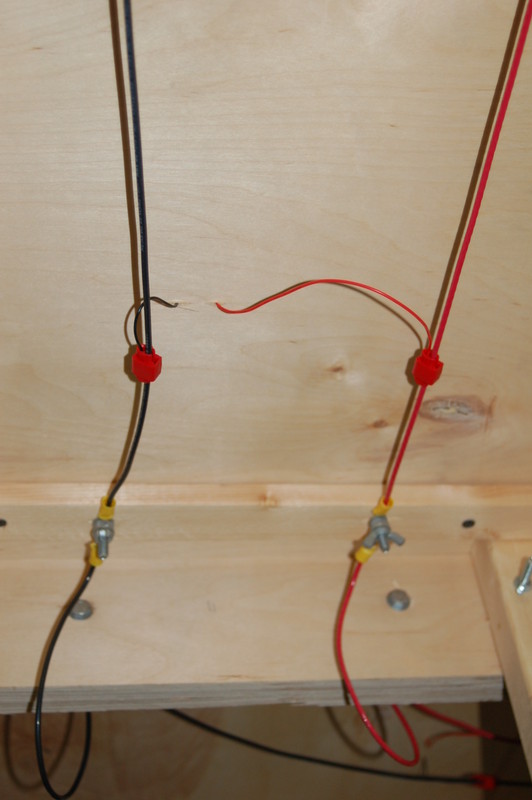

Even the wiring is sectional. The busses are 12 gauge stranded wire running to homemade terminal strips. Small 6 inch runs are connected with wing nuts to join together the dominoes. Wiring was speeded along with the use of 3M Suitcase Connectors to eliminate soldering under the layout.
By: James McNab

Album: IAIS-Based Layouts navigate UP Album: James McNab's Grimes Line navigate UP Album: Grimes Industrial Track navigate UP Album: Benchwork navigate UP (accesskey 'U')
Even the wiring is sectional. The busses are 12 gauge stranded wire running to homemade terminal strips. Small 6 inch runs are connected with wing nuts to join together the dominoes. Wiring was speeded along with the use of 3M Suitcase Connectors to eliminate soldering under the layout.
